1999 Pontiac Trans Am

The Project
Pushing a late-model F-Body platform to 744 rear-wheel horsepower and 823 wheel torque requires moving past factory limitations into extreme mechanical resilience. This 1999 Pontiac Trans Am relies on a blueprinted, hand-built 408 cubic inch iron-block engine packed with heavy-duty Callies and Wiseco forged internals. To push the chassis into supercar-slaying territory, we integrated a sophisticated Nitrous Outlet 102mm dual-stage plate system, completely isolated by its own dedicated fuel cell. Supported by an indestructible Strange Engineering Dana 60 rear end and a specialized drag suspension, this Trans Am converts massive nitrous torque into pure, forward trajectory.
modern muscle
Street Trim: 744 RWHP / 823 RWTQ
modern muscle
Engine: Forged 408ci LQ9 Iron Block
modern muscle
Power Adder: Nitrous Outlet 102mm Dual-Stage Plate System
Interested in your own custom build?
schedule your service
1999 pontiac trans am

Built to Lead. Engineered to last.

A brutal manifestation of F-Body dominance. Pushing a terrifying 744 RWHP and 823 RWTQ, this build features a hand-built, forged 408ci iron block and a Nitrous Outlet dual-stage system.

1999 pontiac trans am

The Nitty Gritty

Build Specifications
Nitrous System & safety Architecture
modern muscle
Nitrous Outlet 102mm LSX Dual-Stage Plate System with billet heated bottle brackets
modern muscle
Nitrous Outlet dedicated fuel system (stand-alone fuel cell for maximum safety)
modern muscle
Integrated NOS Window Switch, electronic TPS controller, fuel pressure safety switch, and FAST 36# burst panels
Drivetrain & Fuel Delivery
modern muscle
Fuel Injector Connection flow-matched 60# fuel injector set with an upgraded 255 LPH fuel pump
modern muscle
Modern Muscle custom Speed Density dyno tune and calibration
modern muscle
3.5″ Aluminum 1000HP-rated driveshaft pinned to a TCI internal balance flexplate
modern muscle
Strange Engineering Dana 60 rear end housing 3.73 performance gears
Chassis & rigidity
modern muscle
BMR tubular front K-member with matching BMR upper and lower control arms
modern muscle
QA1 adjustable front coilovers paired with a QA1 Pro single-adjustable rear coil system (300# springs)
modern muscle
ARP high-tensile main and head stud kits anchoring the complete block architecture
modern muscle
Lightweight Powerbond 25% underdrive balancer pulley spinning sticky Mickey Thompson ET Street Radial II tires (295/45/17)

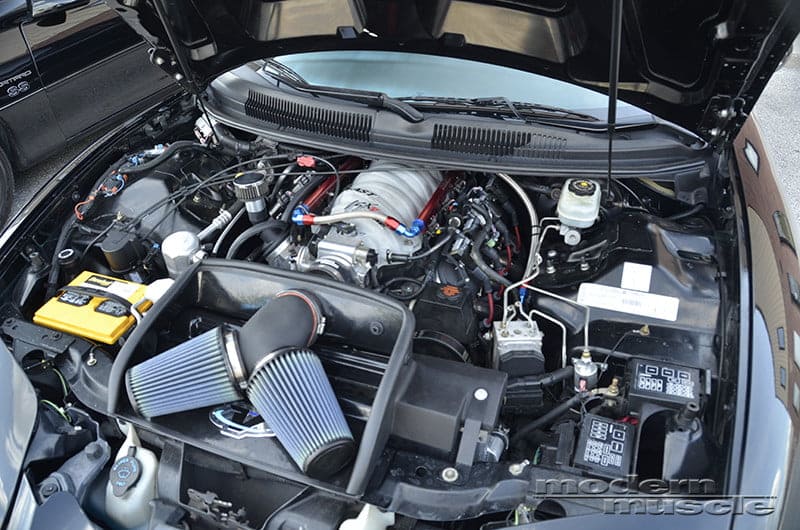

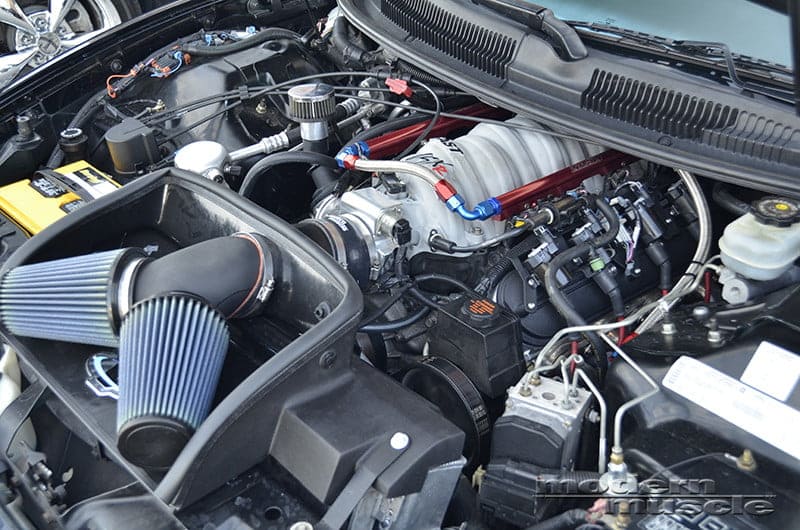

The Powerplant & Exhaust
modern muscle
PRC L92/LS3 CNC-ported cylinder heads with hollow-stem valves, PAC .750″ lift springs, and titanium retainers
modern muscle
Modern Muscle custom hydraulic roller camshaft with Morel Ultra Pro link-bar lifters and COMP Cams Ultra Gold rockers
modern muscle
Magnaflow stainless cat-back exhaust with quad tips and an integrated DMH electronic exhaust cutout
modern muscle
408ci LQ9 iron block featuring Callies CompStar crankshaft, Ultra H-beam rods, and Wiseco forged pistons
