2005 Pontiac GTO Single 78mm Comp Turbo

The Project

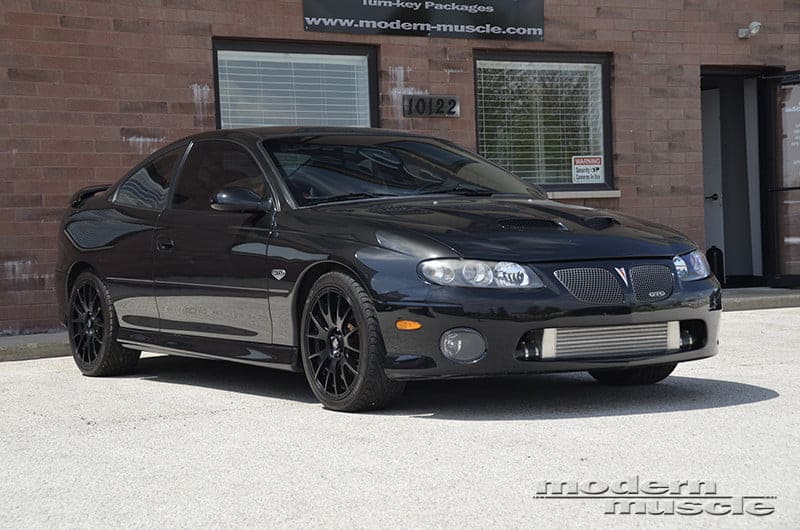

This 2005 Pontiac GTO is officially the Quickest Naturally Aspirated Late-Model GTO in the World, clocking a devastating 9.959-second pass at 134.8 mph down the quarter-mile. Anchored by a hand-built Modern Muscle 500 cubic inch Gen IV LSX tall-deck stroker engine, every millimeter of this vehicle was engineered to maximize high-RPM airflow and eliminate mechanical parasitic loss. Translating this power into single-digit track times meant throwing out the factory floor plan—we mini-tubbed the chassis to swallow ultra-sticky Mickey Thompson tires, swapped in an FTI TH400 racing transmission, and protected the cockpit with an 8.50 NHRA-certified safety cell.
modern muscle
Street Trim: 707 RWHP / 687 RWTQ @ 12.6 PSI
modern muscle
Induction: Comp Turbo 78mm Billet Wheel (CT43-7879)
modern muscle
Drivetrain: RPM Level V T-56 & Complete G-Force Outfitting
Interested in your own custom build?
schedule your service
2005 pontiac gto engine

Built to Lead. Engineered to last.

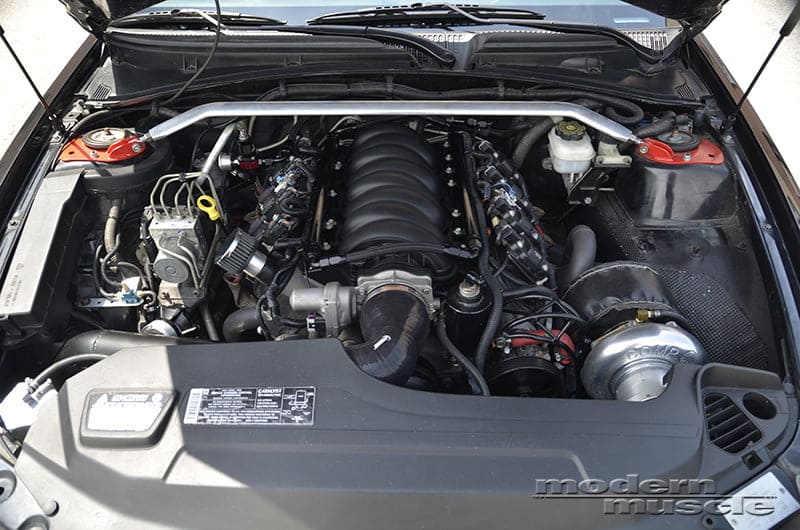

An absolute masterclass in late-model Goat development. This 2005 GTO relies on a forged, blueprinted LS2 platform and a custom front-mount 78mm Comp Turbo to unleash 707 RWHP.

2005 pontiac gto engine

The Nitty Gritty

Build Specifications
Nitrous System & safety Architecture
modern muscle
Comp Turbo 78mm billet-wheel turbocharger (CT43-7879) controlled by a TiAL MVR44 wastegate and TiAL Q blow-off valve
modern muscle
ProCharger 1,300HP-rated heavy-duty GTO race intercooler matrix and an AEM Tru-Boost electronic boost controller
modern muscle
High-capacity Ron Davis aluminum radiator system optimized for maximum heat extraction under continuous boost loads
Drivetrain & Fuel Delivery
modern muscle
RPM Level V heavy-duty built T-56 6-speed manual transmission paired with a vicious Monster Level 5 clutch kit
modern muscle
Modern Muscle custom full-return in-tank fuel system utilizing billet fuel rails and an Aeromotive adjustable fuel pressure regulator
modern muscle
Bosch 80# (at 3 bar) flow-matched fuel injector set managed by a custom Modern Muscle Speed Density dyno calibration
modern muscle
G-Force 3.5″ balanced aluminum driveshaft mated to heavy-duty G-Force Level 2 half-shafts and 28-spline reinforced axle stubs
Chassis & rigidity
modern muscle
Complete Pedders Suspension Track II "No Drop" performance chassis handling system
modern muscle
Hardened chromoly pushrods and Comp Cams retro-fit rocker arm trunion upgrades reinforcing valvetrain stiffness
modern muscle
High-performance street braking system calibrated to balance high-speed turbo charging deceleration
modern muscle
Restored late-model factory cockpit retaining all functional road-tripping comforts and instrumentation
The Powerplant & Exhaust
modern muscle
Wiseco 4.005″ bore pistons with GFX rings, ACL performance bearings, and full ARP head and main stud kits
modern muscle
PRC 6.0L Stage 3 ported cylinder heads, PAC Racing dual valve springs, Morel Ultra Pro link-bar lifters, and a custom Modern Muscle turbo camshaft
modern muscle
Custom tubular front-mount single turbo system integrated with a high-flowing Magnaflow performance exhaust network
modern muscle
Forged GM LS2 V8 block featuring a Callies Compstar 4.000″ stroke crankshaft and matching Callies 6.125″ H-beam connecting rods
2005 pontiac gto engine
