2008 Chevy Corvette C6 Z06 Procharger F1

The Project
Delivering 843 rear-wheel horsepower and 847 wheel torque requires stepping away from aluminum factory limits and embracing structural absolute integrity. At the core of this C6 Z06 sits a hand-built, blueprinted 454 cubic inch LSX iron block stuffed with a forged Callies Dragonslayer crank and a race-proven Procharger F1-A centrifugal supercharger pushing 12.8 PSI of boost. True engineering means ensuring the drivetrain can actually survive this onslaught, which is why we eliminated the weak factory differential points by installing an RPM Transmissions Stage 4 diff armed with a WaveTrac unit. Kept glued to the pavement by premium LG Motorsports coilovers and massive Nitto drag radials, this Z06 transforms extreme boost pressure into instant traction.
modern muscle
Street Trim: 843 RWHP / 847 RWTQ @ 12.8 PSI
modern muscle
Engine Block: 454ci LSX Standard Deck Iron Block
modern muscle
Induction: Procharger F1-A Centrifugal Supercharger
Interested in your own custom build?
schedule your service
ls7 v8

Built to Lead. Engineered to last.

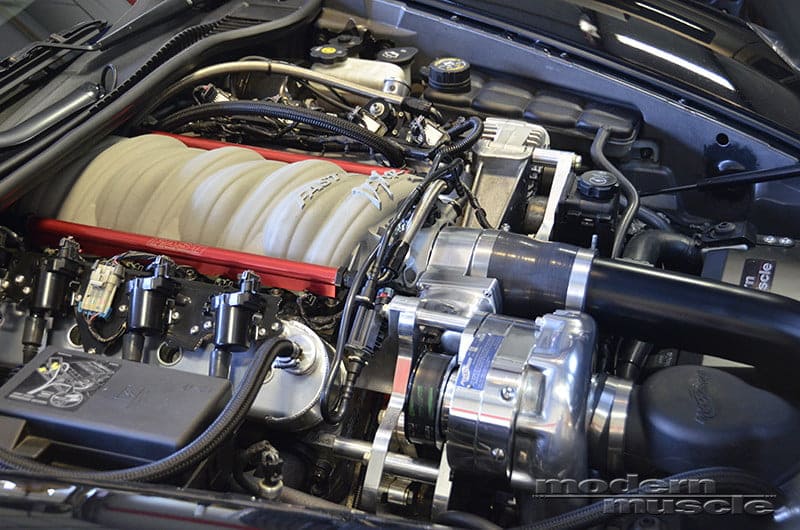

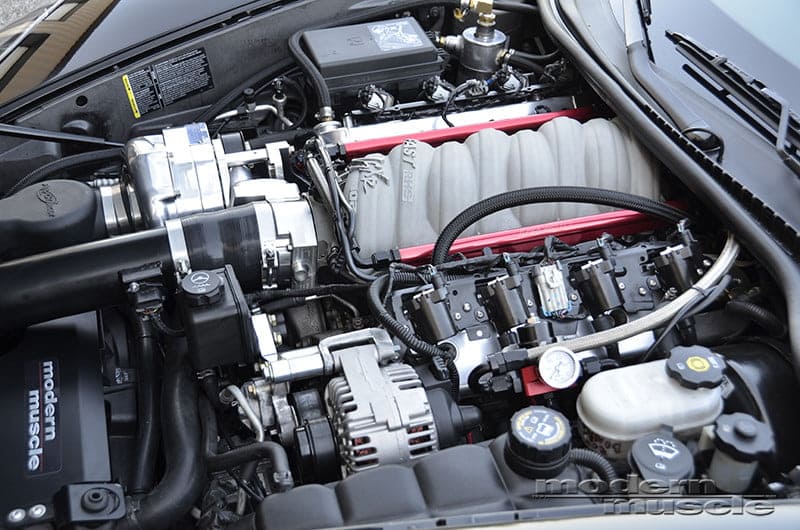

843 rear-wheel horsepower of pure centrifugal violence. This C6 Z06 combines a bulletproof 454ci LSX iron block with a Procharger F1-A system pushing 12.8 PSI of boost.

ls7 v8

The Nitty Gritty

Build Specifications
Nitrous System & safety Architecture
modern muscle
Procharger F1-A supercharger system anchored by heavy-duty A&A Supercharger brackets
modern muscle
Dedicated high-boost bypass architecture built for immediate pressure relief
modern muscle
Advanced under-hood thermal shielding to maintain optimal intake air temperatures (IATs)
Drivetrain & Fuel Delivery
modern muscle
Aeromotive Eliminator Corvette Stealth in-tank fuel pump system with a matching Aeromotive A1000 injected bypass regulator
modern muscle
FAST 102mm fuel rails supplying Bosch 95# (at 3 bar) flow-matched fuel injectors
modern muscle
McLeod RST heavy-duty twin-disc clutch assembly paired with a Modern Muscle custom Speed Density dyno calibration
modern muscle
RPM Transmissions Stage 4 performance differential housing a WaveTrac differential, 300M stub shafts, and a 3.42 gear ratio
Chassis & rigidity
modern muscle
FAST 102 intake manifold paired with a Nick Williams 102mm drive-by-wire throttle body
modern muscle
LG Motorsports G2 track-spec coilover suspension kit specifically tuned for the C6 Z06 chassis
modern muscle
High-performance track braking system optimized to manage rapid, high-speed deceleration
modern muscle
Premium staggered street-and-strip footprint featuring ultra-sticky Nitto NT05R rear drag radials (345/30R19)
The Powerplant & Exhaust
modern muscle
Wiseco forged piston set (4.185″ bore / -30cc) with high-strength GFX rings and ARP head studs
modern muscle
High-flow ported LS7 cylinder heads outfitted with PAC Racing dual valve springs and a custom-ground Modern Muscle performance camshaft
modern muscle
Stainless Works 1 ⅞” long-tube headers and matching high-flow X-pipe leading to the exhaust system
modern muscle
454ci LSX standard deck iron block featuring Callies Dragonslayer 4.125″ stroke crankshaft and Ultra 6.125″ H-beam rods with ARP2000 fasteners
