2010 Chevy Camaro SS N/A Stock Bottom End

The Project
Pushing a GM LS3 past 519 rear-wheel horsepower and 462 wheel torque without the assistance of blowers, turbos, or nitrous requires an absolute masterclass in volumetric efficiency. This 2010 Camaro SS is a purist's weapon, replacing the factory induction layout with game-changing Mast Motorsports Black Label 11-Degree cylinder heads and a massive FAST 102mm intake manifold. True engineering-led design dictates that power is meaningless if it twists the chassis, so we re-architected the entire power transfer matrix using a lightweight carbon fiber driveshaft and Level 5 axles from The Driveshaft Shop. Locked to the street with an extensive BMR suspension catalog and lightweight Bogart COPO-style racing wheels, this Camaro launches with violent, atmospheric efficiency.
modern muscle
Street Trim: 519 RWHP / 462 RWTQ
modern muscle
Engine Stance: Naturally Aspirated // Stock Bottom End (SBE)
modern muscle
Top-End: Mast Motorsports Black Label 11-Degree Heads
Interested in your own custom build?
schedule your service
2010 chevy camaro ss

Built to Lead. Engineered to last.

Pushing the mathematical boundaries of a naturally aspirated LS3. Pushing 519 RWHP on the stock bottom end, this Gen 5 Camaro utilizes elite Mast top-end geometry and a full carbon fiber drivetrain.

2010 chevy camaro ss

The Nitty Gritty

Build Specifications
Nitrous System & safety Architecture
modern muscle
Halltech Yellow Jacket cold air induction system funneling ambient air directly into the throttle body
modern muscle
BMR structural driveshaft safety loop integrated directly into the transmission tunnel
modern muscle
Powerbond 25% underdrive balancer pulley eliminating front-end accessory parasitic engine drag
Drivetrain & Fuel Delivery
modern muscle
FAST 102mm intake manifold mated to a Nick Williams 102mm drive-by-wire (DBW) throttle body and FAST billet fuel rails
modern muscle
Fuel Injector Connection (FIC) 50# flow-matched fuel injectors optimized for high-RPM natural aspiration curves
modern muscle
McLeod RXT Street Twin-Disc Clutch kit spinning an ultra-lightweight Carbon Fiber Driveshaft from The Driveshaft Shop
modern muscle
The Driveshaft Shop Level 5 heavy-duty axle set connected to a performance 4.10 Motive Performance ring and pinion gear set
Chassis & rigidity
modern muscle
BC Racing fully adjustable coilover suspension package with comprehensive Pedders chassis bushings
modern muscle
BMR structural subframe connectors, adjustable rear trailing arms, and adjustable rear toe rods maximizing rear launch stability
modern muscle

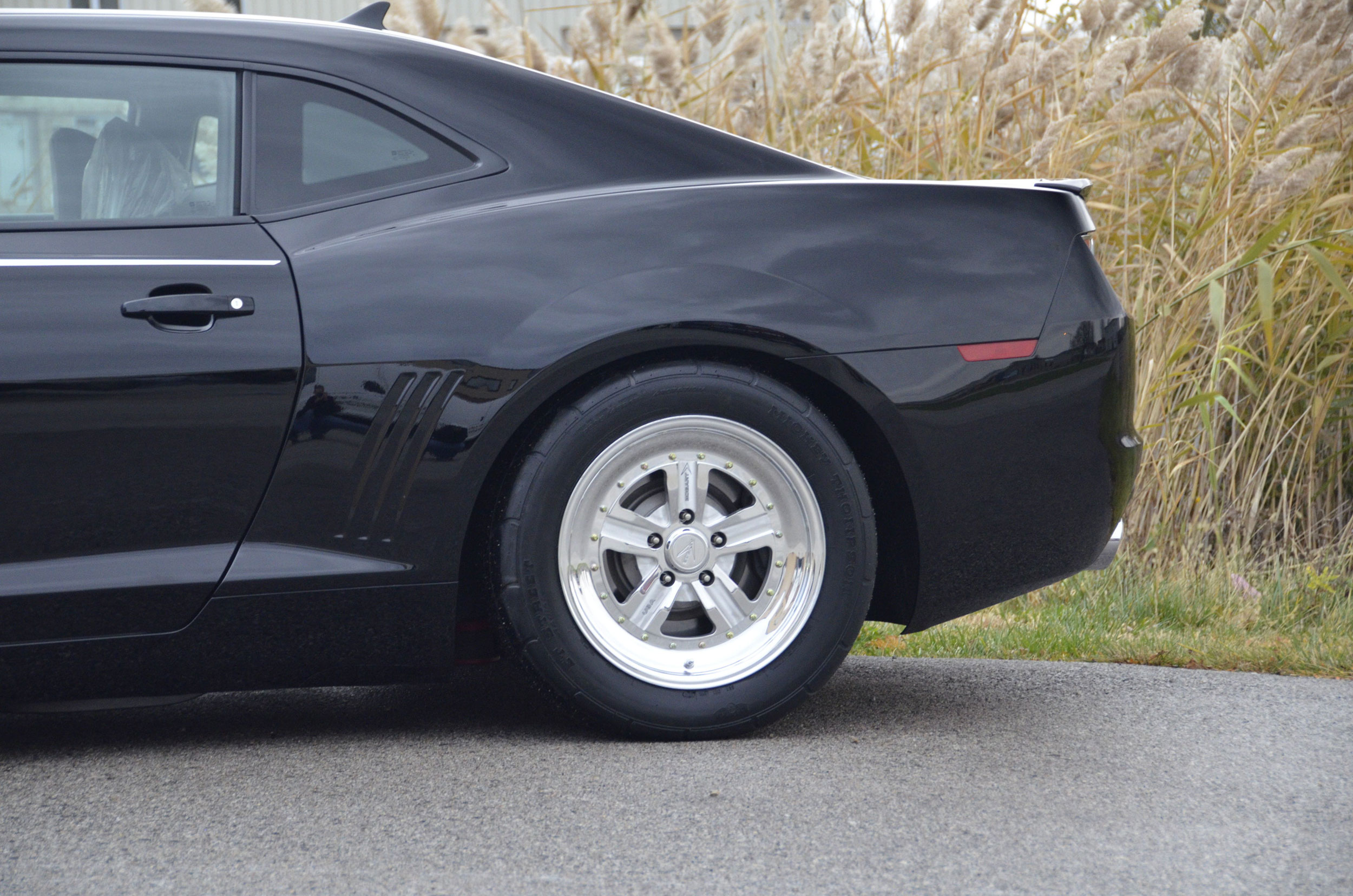

Bogart COPO-style lightweight racing wheels (17×5” Front // 17×10” Rear) engineered for reduced unsprung rotating mass
modern muscle
Serious drag-radial footprint featuring Mickey Thompson street radials upfront and biting Drag Radial II (295/45R17) tires out back

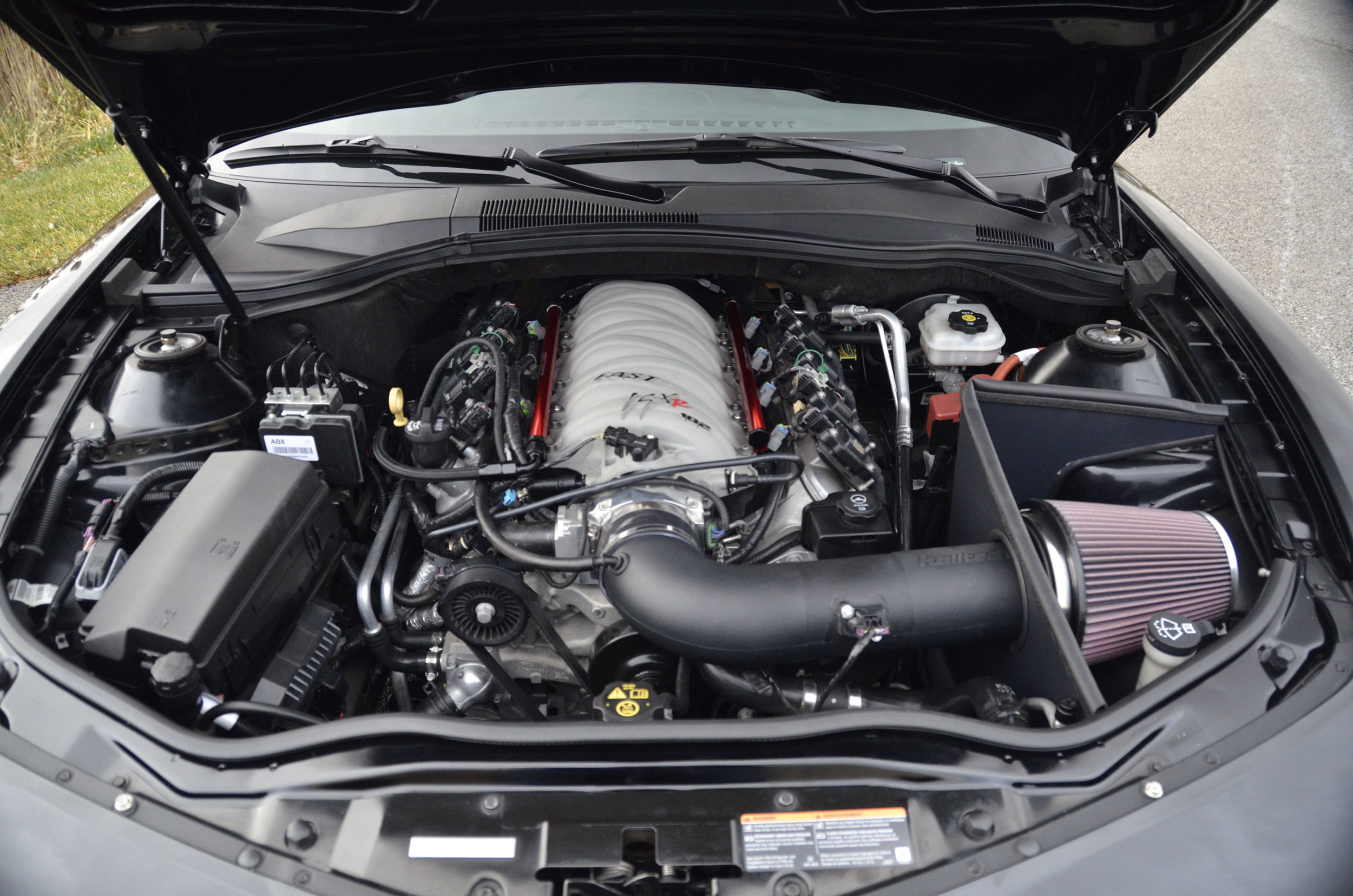

The Powerplant & Exhaust
modern muscle
Mast Motorsports Black Label LS3 11-Degree custom-ported cylinder heads secured by high-tensile ARP head bolts
modern muscle
Modern Muscle custom hydraulic roller camshaft supported by Morel Ultra Pro link-bar lifters, PAC Racing dual valve springs, and a JP Performance adjustable double-roller timing set
modern muscle
American Racing 1 7/8″ long-tube headers with matching off-road midpipes running into a high-flowing exhaust matrix
modern muscle
GM 6.2L LS3 engine platform retaining the resilient factory Stock Bottom End (SBE)
